Sizes

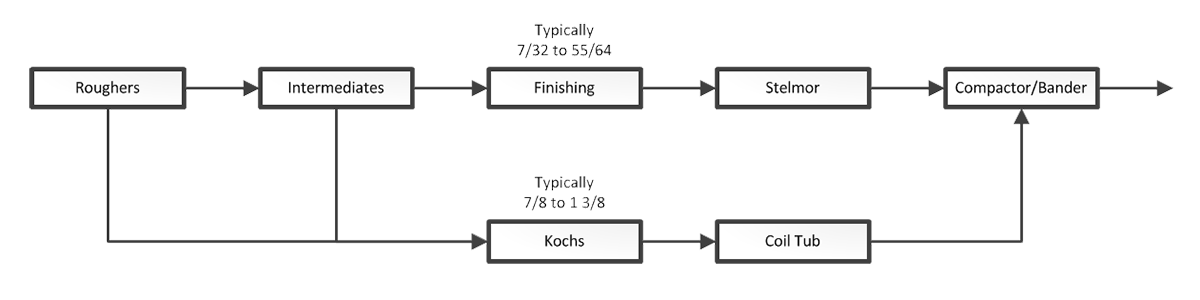

Saukville Rolling Mill Process Path by Product Diameter

Saukville Rolling Mill Process Path by Product Diameter

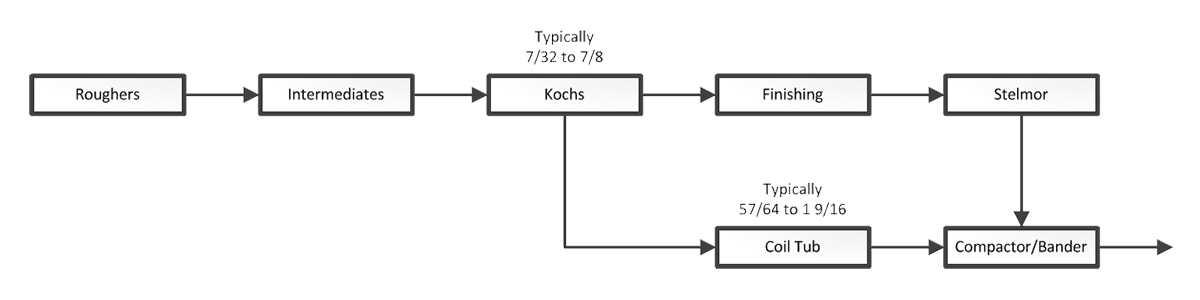

Cleveland Rolling Mill Process Path by Product Diameter

Cleveland Rolling Mill Process Path by Product Diameter

Detailed List of Size Capabilities

Fraction Decimal MM
7/32 .2187 5.556
15/64 .2344 5.953
1/4 .250 6.350
17/64 .2656 6.747
9/32 .2812 7.144
19/64 .2969 7.541
5/16 .3125 7.937
21/64 .3281 8.334
11/32 .3437 8.731
23/64 .3594 9.128
3/8 .375 9.525
25/64 .3906 9.922
13/32 .4062 10.319
27/64 .4219 10.716
7/16 .4375 11.113
29/64 .4531 11.509
15/32 .4687 11.906
31/64 .4844 12.303
1/2 .500 12.700
33/64 .5156 13.097
17/32 .5312 13.494
35/64 .5469 13.890
9/16 .5625 14.287
37/64 .5781 14.684
19/32 .5937 15.081
39/64 .6094 15.478
5/8 .625 15.875
41/64 .6406 16.272
21/32 .6562 16.669
43/64 .6719 17.065
11/16 .6875 17.462
45/64 .7031 17.859
23/32 .7185 18.256
47/64 .7344 18.653
3/4 .750 19.050
49/64 .7656 19.447
25/32 .7812 19.844
51/64 .7969 20.240
13/16 .8125 20.637
53/64 .8281 21.034
27/32 .8437 21.431
55/64 .8594 21.828
7/8 .875 22.225
Fraction Decimal MM
57/64 .8906 22.622
29/32 .9062 23.019
59/64 .9219 23.415
15/16 .9375 23.812
61/64 .9531 24.209
31/32 .9687 24.604
63/64 .9843 25.003
1 1.0 25.400
1-1/64 1.0156 25.797
1-1/32 1.0312 26.194
1-3/64 1.0468 26.594
1-1/16 1.0625 26.987
1-5/64 1.0781 27.384
1-3/32 1.0937 27.781
1-7/64 1.1094 28.178
1-1/8 1.125 28.575
1-9/64 1.1406 28.972
1-5/32 1.1562 29.369
1-11/64 1.1719 29.766
1-3/16 1.1875 30.162
1-13/64 1.2031 30.559
1-7/32 1.2187 30.956
1-15/64 1.2344 31.353
1-1/4 1.250 31.750
1-17/64 1.2656 32.147
1-9/32 1.2812 32.544
1-19/64 1.2969 32.941
1-5/16 1.3125 33.337
1-21/64 1.3281 33.734
1-11/32 1.3437 34.131
1-23/64 1.3594 34.528
1-3/8 1.375 34.925
1-25/64 1.3906 35.322
1-13/32 1.4062 35.719
1-27/64 1.4219 36.116
1-7/16 1.4375 36.513
1-29/64 1.4531 36.909
1-15/32 1.4687 37.306
1-31/64 1.4844 37.703
1-1/2 1.500 38.100
1-33/64 1.5156 38.497
1-17/32 1.5312 39.894
1-35/64 1.5469 39.290
1-9/16 1.5625 39.687
